Upgrade Windows 2012 R2 Root CA from SHA1 to SHA256

How to update Windows 2012 R2 AD CA from SHA1 to SHA2 or SHA256

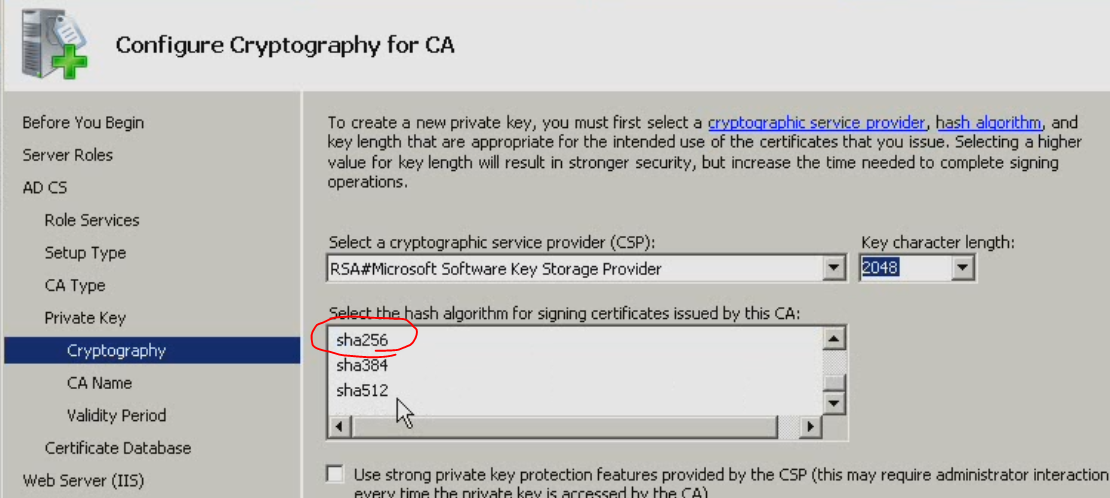

Windows 2012 R2 Active Directory integrated by default publish and issue SHA1 certificates, which is now declared as untrusted by Google Chrome. There was warning window during configuration, but who knows it so important, after it is already intergrated you can discover you forget to change default hash algorithm.

Windows 2012 R2 out of the box provider is already MS Software Key Storage Provider so you don't have to convert something. It is out of this article, how to install nginx, CA or IIS.  To convert storage provider, seek for more complex technet articles like this.

Conversion of CA hash algorithm

To convert Certification Authority and web server certificates form sha1 to SHA 256 it is pretty simple but not so well documented.
To convert Certification Authority you just have to type one command. Go to Administrator command prompt.

certutil -setreg ca\csp\CNGHashAlgorithm SHA256

How to Issue Windows 2012 R2 CA sha256 trusted certificate to Graylog ubuntu nginx or apache web server

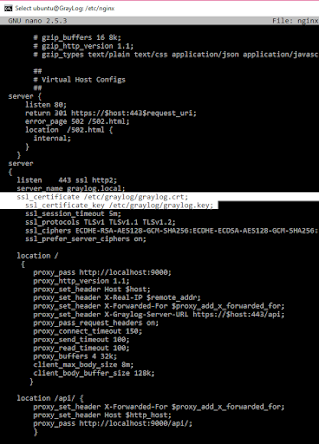

A little bit more complex is request key from linux for nginx or apache server. I already had self signed certificate, but from linux perspective, request is almost the same. To avoid exposure of API and port 9000 I am keeping nginx proxy on graylog server.  My nginx configuration is as follows, as you can see, there is nothing changed from graylog perspective.

If you don't have key at all you have to first generate a key.

openssl genrsa -out graylog.key 2048

You can use old key, and just request certificate.

openssl req -new -key graylog.key -out graylog.csr -new -sha256 -x509

The last x509 probably is not necessary, but in case you have old linux/ unix you can type -x509. See the picture

Check if your csr file is present. You can grab it by scp or just copy content in clipboard.

To request certificate with Subject  Alternative Names

1.Create Answer file

[ req ]

default_bits = 2048

prompt = no

default_md = sha256

req_extensions = req_ext

distinguished_name = dn

[ dn ]

C=LV

ST=Latvia

L=Riga

O=Organisation

OU=IT

emailAddress=giors@lv

CN = server.lv

[ req_ext ]

subjectAltName = @alt_names

[ alt_names ]

DNS.1 = server.lv

DNS.2 = www.server.lv

2.Request certificate providing answer file

openssl req -new -sha256 -nodes -key server.key -out server.csr -config <( cat csr_details.txt )

Vuala certificate is provided with alternative names

Enroll certificate from Windows 2012 R2 CA

To issue certificate, You must have permissions to Enroll Web certificates. Go to "Certification Authority" mmc, Right click Templates and Choose "Manage".

Next go to Your CA web server certsrv page and "Request a certificate"

Next choose "Advanced certificate request"

Choose base-64 encoded

Copy csr file content in  Request form and choose web server template. If Web Server Template does not appear, You don't have appropriate permissions.

Confirm request.

Download certificate as Base 64 encoded.

Check your certificate details. Rename certificate from cer to crt, Copy it in appropriate location in apache server. Most cases it is  /etc/apache2/ssl

 Restart your apache or nginx and verify- connection is now secure.

Issue Windows CA trusted certificate to Domain web server

To issue trusted certificate just go to IIS server Root
IIS Root→Server Certificates→Create Domain Certificate.
Fill all fields, remember, Common name must match what you type in address in your web browser. Press Finish, you will be asked for Certification authority name and server. Point to Your CA . In case you already had sha1 signed certificate, you just have to push Renew, and certificate turns automatically from sha1 to sha256.

If Workstation is not in domain

Certificate show problems, if Workstation is not in domain. It is because Root certificate is not installed, in domain Root CA is installed on all workstations via group policy automatically, if web server is accessed from workstation out of the domain, add Basic Constraints extension. It is probably because workstation doesn't know whether server is CA or end point. Go to CA ->Manage templates->Right click on template->Properties.

Make extension critical and vuala it appears on certificate.

Basic Constraints

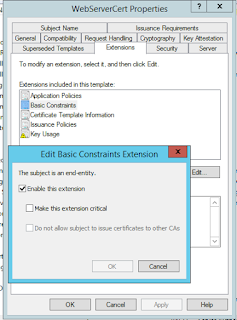

Besides there must be enabled Basic Constraints, if clients is not installing Root certificate, so browser does not know if cert is CA or not. So to enable Basic Contraints go to Templates->Right Click->Manage->Template->Extensions-Basic Constraints

Name Constraints

Name constraints are allowed suffixes of domain to avoid illegal certificate to be issued.

CAPolicy.inf has to be copied in C:\Windows directory and server must be restarted.  Actually it must be placed before install Certification Authority role on server.

[Version]

  Signature= "$Windows NT$"

  [NameConstraintsExtension]

  Include = NameConstraintsPermitted

  Critical = True

  [NameConstraintsPermitted]

  DNS = .domain.com

  DNS = .altdomainname.com

  email = @email.suffix

  UPN = .domain.com

  UPN = @domain.com

  DIRECTORYNAME = "DC=domain, DC=com"



  URL = .domain.com

  URL = .altdomainname.com

After restart new issued certificates will appear with NameConstraints defined.
